2050LOG 0.5 mV/µW (NORMAL SENSITIVITY)
LOG PERIODIC ANTENNA
2050LOG-H 1.0 mV/µW (HIGH SENSITIVITY)
2050LOG 0.5 mV/µW (NORMAL SENSITIVITY)
LOG PERIODIC ANTENNA
2050LOG-H 1.0 mV/µW (HIGH SENSITIVITY)
|

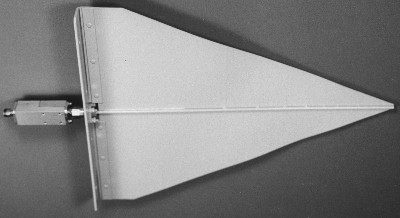

The 2050LOG/H is a 1GHz to 18+GHz frequency extender antenna/detector for the 2050CA RF locator. The antenna "sees" directly along the flat triangular face. To use, grasp the antenna at the detector end being careful not to touch the antenna elements on the circuit board. Sweeps should be done with the antenna held vertically and then horizontally. Always store the unit with the detector module connected to the cable and the detector module removed from the antenna. |
10/08
